What is Green Sand Casting?
Click to Enlarge
At Leitelt Brothers Inc. we specialize in low, medium and large volume production run Sand Castings ranging from 1 ounce up to 500 pounds.
- Short Run Production Castings (less than 100 pieces)
- Medium Run Production Castings (100-5,000 pieces)
- Large Run Production Castings - Contact Us about your specific project.
- Blanket order releases - stocking inventory program
Green Sand Casting & Molding
Green sand molding is a popular casting process used to create metal components. It uses green or wet, uncured sand with additives to form the mold cavity rather than dried or baked sand.
Our Green Sand Molding Process
The molding process starts with the processing of raw sand to ensure even grain size. We then incorporate additives that allow the sand to retain its shape during casting. Additives may include clay, coal dust, cellulose, pitch, and silica flour depending on the application.

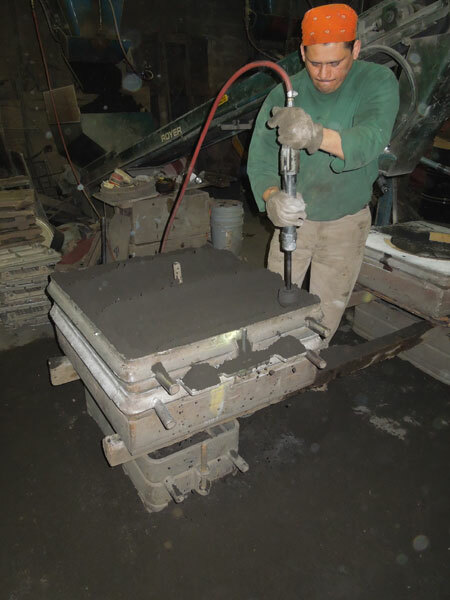

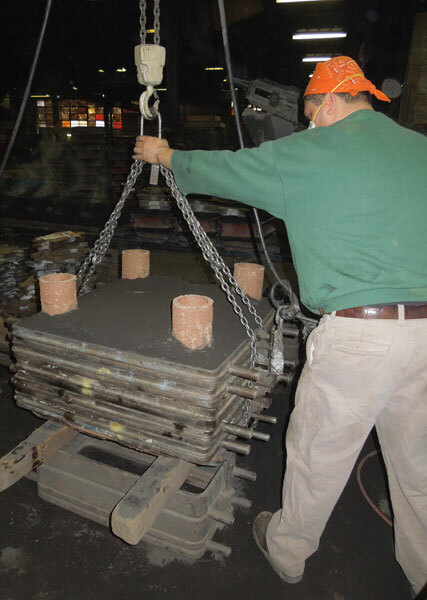

Once we have a pattern for the desired component, we create a form by compression sand around the pattern at high pressure. We can add cores and other spaces for internal cavities and components per your provided specifications.

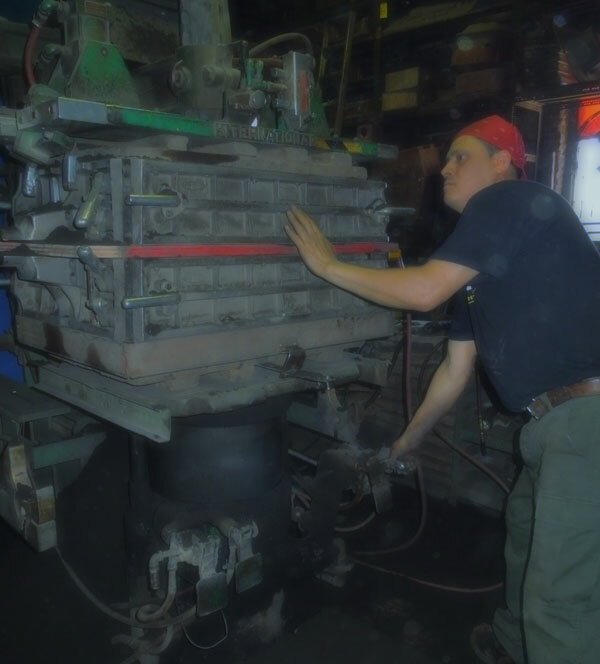

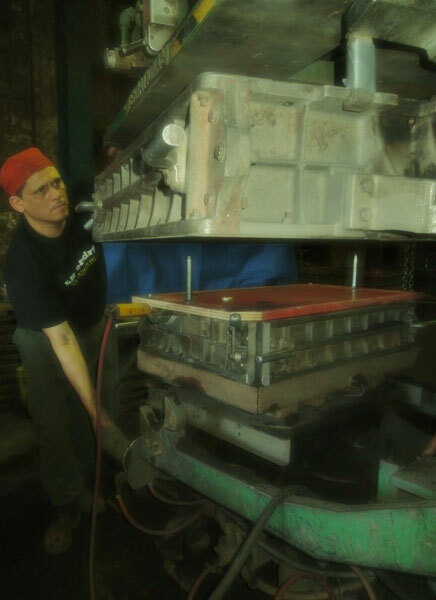

Our two International and Osborne green sand molding machines are the workhorses of the shop. These versatile machines are built for all levels of production and are capable of handling castings weighing up to 100 pounds.
In addition, our 6-station squeezer molding line offers the added versatility of quick setup and fast turnaround of lighter weight castings.
With a fully automated overhead sand supply and high volume pallet lines, orders for 100's or 1000's of green sand castings are made efficiently.
Advantages of Green Sand Casting
Benefits of green sand molding include its flexibility which allows us to use it to create components in a wide range of shapes and sizes for various industries. We can build molds for complex shapes and make changes as needed to meet customer needs.
Green sand casting is also a cost-effective process. We can use it to produce large quantities of components quickly and efficiently, which reduces production costs and increases profitability. Another benefit of using green sand molds is that the sand is fully recyclable and reusable.
Applications for Green Sand Molding
We regularly use green sand casting to create molds for OEM parts manufacturers, medical device companies, and food & beverage manufacturers. We can also pour complex shapes for military, marine, and diesel engine applications.
Chicago's Leading Green Sand Foundry

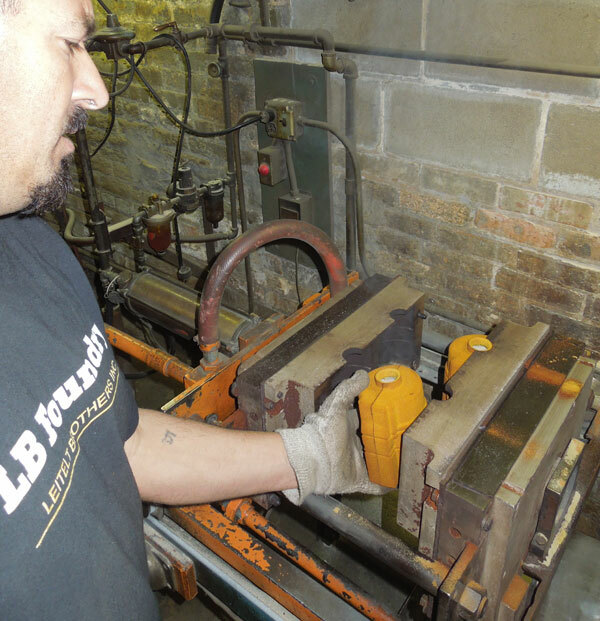

We also offer a diverse line of core making processes with shell, oil sand, and air-set coring capabilities. These processes enable us to offer creative solutions to the most challenging casting design. Our experienced foundry craftsmen routinely produce castings that most other foundries can't or won't attempt. In addition to the unique castings and Design Assistance, we offer Complete Finishing Services such as satin polish, mirror polish, oxidizing, sandblasting, powder coat paint, clear coat and anodizing.
Leitelt Brothers, Inc. is a leading green sand foundry in the Chicago area. We provide castings for industries including architectural, construction, electrical, food processing, and medical equipment manufacturers. With over 100 years of experience in the sand casting industry, we can pour 10 brass and bronze alloys and six aluminum alloys to meet specific business needs. Call us at 773-721-1186 to request a quote.
Click to enlarge the following sample Green Sand Molding work.
